An easy-to-install, cost-effective solution delivering the renowned robust pressure and resistance of Unipipe systems

Unipipe Solutions, a provider in the industrial piping sector, just introduced the UnipipeEZ Aluminum Piping System, specifically designed for compressed air applications as well as oil, coolants, and water. This advanced system provides a durable, cost-effective solution that guarantees high air quality and leak-free performance, with a pressure rating of 232 PSI (15 BAR). The UnipipeEZ system is straightforward to install and requires neither specialized tools nor skilled labor.

Unipipe systems boast the most secure fittings in the market. Like all Unipipe systems, UnipipeEZ features a proprietary stainless steel clamp ring that bites into the aluminum pipe, creating a connection rated for over five times the pressure of other systems. This clamp ring ensures 100% contact around the pipe and tightens further as pressure increases.

The unique design facilitates quick and secure installation without the need for special tools, crimping, or grooving. The installation process takes half the time of traditional piping options and is significantly faster than copper piping. The system’s lightweight nature—75% lighter than iron pipe—allows for single-person installation of systems up to 6 inches in diameter.

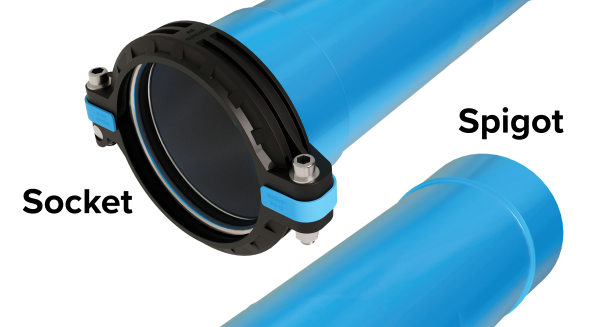

UnipipeEZ delivers the same pressure and resistance performance as the standard Unipipe line but with even easier installation. To connect standard-length UnipipeEZ pipes, insert the factory-formed male end into the female end and secure it by attaching the all-aluminum UnipipeEZ hinged coupling, locking it in place with a single bolt. For shorter pipe lengths, cut the pipe, insert the stainless steel ring, block with a block ring, and then attach the UnipipeEZ hinged coupling and tighten the single bolt.

Unipipe systems are ideal for ultra-clean environments and are available in a wide range of diameters, from ¾” to 10″.

UnipipeEZ and all other Unipipe lines are universally compatible with each other and with most other aluminum systems currently on the market, ensuring a seamless integration process. All Unipipe pipe and fittings come with a 20-year guarantee against manufacturer’s defects, provided they are installed and supported according to the Unipipe installation instructions.
